Architectural Solutions - Architectural Expanded Metal Mesh - Perforated Metal
Our architectural expanded metal mesh, perforated meshes enable you to create visually stunning and unusual facades across a huge range of buildings, from car parks and shopping centers to contemporary arts projects like museums and theaters. Diamond, slotted, circular, flat, shaped, rigid, flexible, natural, coloured, shiny and matte – the shapes and finishes for expanded mesh are endless. This rain screen cladding option is versatile and flexible enough to realize the most imaginative of architectural plans.
In building, the uses of architectural expanded metal products are becoming popular. A variety of steel structures made of expanded metal in the form of sheets or coils are used for wall construction. Using the latest technology made by cutting and expansion, the steel expanded meshes are more lightweight but strong bearing capacity. Conventional wall construction is a major net steel diamond-shaped hole, used in high-rise building, civilian room, plants and other large plastering works for a mortar substrate mount strong, cracking, earthquake and other characteristics of a modern building in the new metal building materials.
Applications of architectural expanded metal includes security mesh, decorative mesh and sunscreen mesh, Diamond Mesh and Floor mesh. Typical applications include walkways and catwalks, machine guards, balustrades and car park facades.
JUMAO has provided many special purpose architectural expanded metals to suit unique applications. If you have a requirement that is not covered in our brochure, contact our team who will assist you. The specialized jumao team can assist architects, engineers, fabricators and specifiers in the correct selection of expanded metal and wire mesh products.
Specification Of Architectural Expanded Metal
| Name
Ref No | LWD | SWD | Strand
Width Thickness
after flatted-before flatted | kg/㎡ | Standard size |
| JM-SF1 | 3 | 1 | 1.22 | 0.5 | 0.5 | 2.84 | 1250×1250 |
| JM-SF2 | 10.5 | 3.5 | 1.33 | 0.7 | 0.7 | 2.69 | 1250×1250 |
| JM-SF3 | 10.5 | 3.5 | 1.01 | 0.5 | 0.5 | 1.42 | 1250×1250 |
| JM-SF4 | 14.22 | 4.63 | 1.8 | 0.69 | 0.7 | 2.4 | 1250×1250 |
| JM-SF5 | 14.22 | 4.58 | 1.83 | 0.86 | 0.9 | 3.01 | 1250×1250 |
| JM-SF6 | 23 | 4.45 | 2.54 | 1.37 | 1.5 | 5.35 | 1250×1250 |
| JM-SF7 | 23.5 | 4.65 | 2.44 | 1.09 | 1.2 | 4.4 | 1250×1250 |
| JM-SF8 | 23.5 | 5.06 | 2.24 | 0.89 | 0.9 | 3.3 | 1250×1250 |
| JM-SF9 | 25 | 8 | 1.98 | 1.09 | 1.2 | 2.93 | 1250×1250 |
| JM-SF10 | 24.38 | 7.96 | 1.88 | 0.86 | 0.9 | 2.2 | 1250×1250 |
| JM-SF11 | 24.38 | 7.87 | 2.39 | 1.37 | 1.5 | 4.06 | 1250×1250 |
| JM-SF12 | 24.38 | 7.62 | 2.24 | 1.09 | 1.2 | 3.3 | 1250×1250 |
| JM-SF13 | 33.53 | 12.36 | 2.06 | 1.09 | 1.2 | 2.15 | 1250×1250 |
| JM-SF14 | 35.05 | 12.56 | 1.96 | 0.86 | 0.9 | 1.62 | 1250×1250 |
| JM-SF15 | 42 | 16.34 | 2.72 | 1.09 | 1.2 | 2.16 | 1250×1250 |
| JM-SF16 | 41 | 15.98 | 2.9 | 1.37 | 1.5 | 2.66 | 1250×1250 |
| JM-SF17 | 66.83 | 27 | 3.43 | 1.37 | 1.5 | 2.02 | 1250×1250 |
Product Tags:
|
|

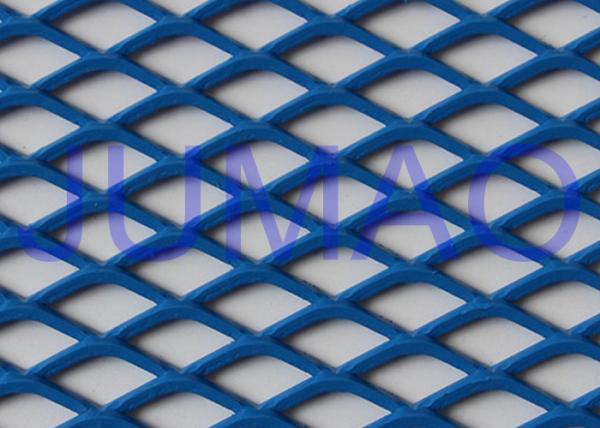

Perforated Architectural Expanded Metal , Blue / Red Steel Expanded Metal Mesh Images
|
